Over the years our Belters reputation has been built on leading the way when it comes to weight, build quality, handling and ease of maintenance. In this, it’s 5th generation, we once more push how far we can take the performance of a 16″ bike while still keeping it as a great every day all-rounder.
The inspiration is to handle the newfound capability of young riders and the greater access there is to fabulous places to ride. The tweaked geometry of our lightweight all aluminium frame has added to the performance, the new Ritchey finishing kit and the Schwalbe Black Jack tyres have given more control and better ride quality. The bomb proof 4 bearing cassette hub taken from our Works 24 gives immediate pick up and zero deflection of the bearings under load.
Some might argue overkill, but this is all about greater control in all conditions – which is why for the Works model we’ve added the awesome TRP Spyre disc brakes. More braking power for more testing terrain and more testing weather conditions but, as the best mechanical brake around, still with that all important always ready to ride, maintenance free quality that makes the Belter just as valuable off the trails as on them.
Key Features

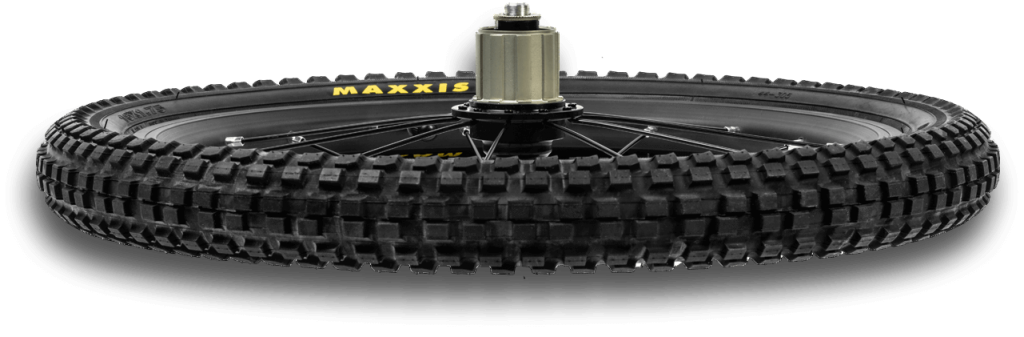

INCREDIBLE FOUR BEARING CASSETTE HUB GIVING IMMEDIATE ENGAGEMENT, LOW RESISTANCE RUNNING AND ZERO BEARING COMPRESSION UNDER TENSION

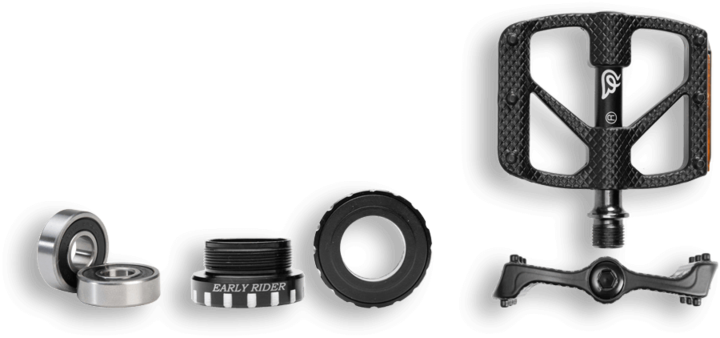

SEALED CARTRIDGE BEARING HEADSET, HUBS, EXTERNAL CUP BB AND STUDDED PLATFORM PEDALS TO MINIMISE RESISTANCE AND PROTECT AGAINST GRIME

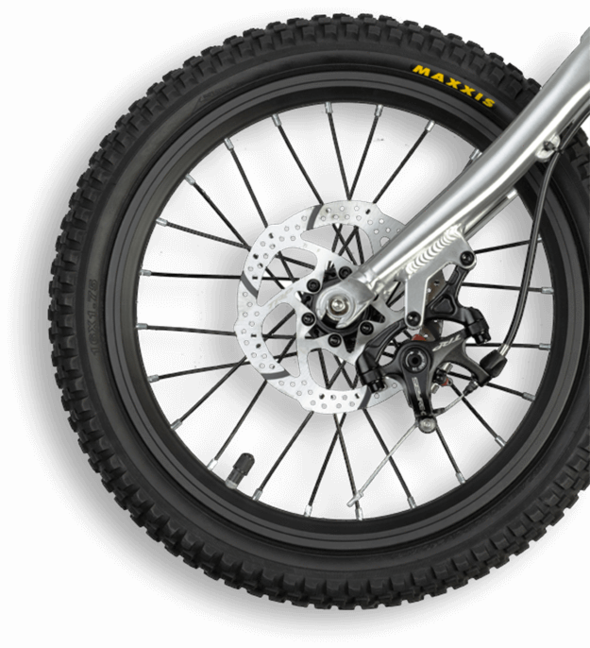

TRP SPYRE: A DUAL SIDED MECHANICAL BRAKE WITH BOTH PADS ACTUATING FOR AN EVEN, PRECISE CLAMPING FORCE AND EVEN PAD WEAR. SIMPLE CABLE BARREL ADJUSTER FOR EASY HASSLE FREE ADJUSTMENT
RITCHEY BAR & STEM FOR PERFORMANCE CONTROLS YOU KNOW YOU CAN TRUST, SOFT TOUCH EARLY RIDER MUSHROOM GRIPS FOR RIDE ALL DAY COMFORT
STANDOVER HEIGHT
42CM
FRAME
HAND BRUSHED AL6061, FORGED DROP OUTS
FORK
HAND BRUSHED AL6061, FORGED DROP OUTS
STEERER TUBE
AL6061
CRANKS
CNC’D AL6061, 105MM
PEDALS
ER CNC’D AL6061, PLATFORM, STUDDED, CARTRIDGE BEARING
BOTTOM BRACKET
ER EXTERNAL CUP, SEALED CARTRIDGE BEARING
RIMS
16 x 20H, DOUBLE WALLED AL6061
REAR HUB
FOUR-BEARING CASSETTE FREE HUB, CNC’D AL6061
FRONT HUB
CARTRIDGE BEARING, CNC’D AL6061
AXLES
HOLLOW, THREADED AL7075
BELT
GATES POWERGRIP 800-8M
FRONT SPROCKET
CNC’D AL7075, 46T, HOLLOW AL7075 AXLE
WEIGHT
6.0KGS
REAR SPROCKET
CNC’D AL7075, 22T
BRAKES
TRP SPYRE MECHANICAL DISC, 140MM ROTORS
LEVERS
TEKTRO SHORT REACH JL350
FRONT TYRE
16*1.9 SCHWALBE BLACK JACK
REAR TYRE
16*1.9 SCHWALBE BLACK JACK
HEADSET
1 1/8” CARTRIDGE BEARING, CONVENTIONAL
STEM
RITCHEY OS FORGED AL6061, 60MM REACH
BARS
480MM RITCHEY OS DOUBLE BUTTED AL6061, 20MM RISE
GRIPS
ER SOFT TOUCH MUSHROOM
SEAT POST
AL6061, 25.4MM
SADDLE
BLACK RIVETTED FAUX NUBUCK
SEAT CLAMP
ER BOLT, 28.6MM
